Remove Cache from the Bridge

You can remove a cache from the Bridge, even if the Bridge is in the running state. This page explains how to remove a cache from a Bridge using the NCache Management Center.

How to Remove Cache via NCache Management Center (Web GUI)

  • Launch the NCache Management Center by browsing to http://localhost:8251 or <server-ip>:8251.

  • In the left navigation bar, click on Bridges. It will open up a list of pre-existing Bridges. From the list, select the Bridge Name and go to View Details.

Clustered Cache added to Bridge

  • On the page opened with details, select the cache to be removed by selecting the checkbox next to the cache name.

  • You can remove the bridge caches using either of the two methods:

    • Method 1: Go to the Bridge Caches section and click on the "..." button. Select the Remove option.

    • Method 2: Click on the Remove Bridge Caches toolbar button from the toolbar to remove the cache.

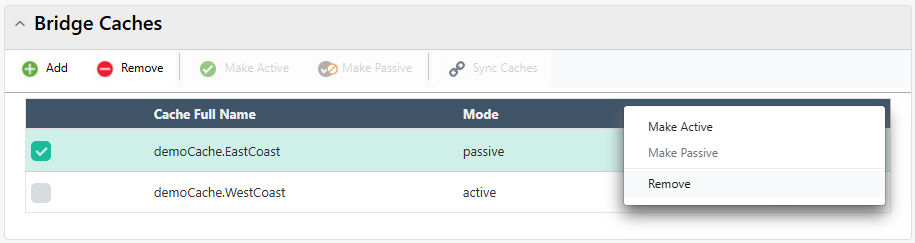

Remove Bridge Caches

  • When you click Remove, a prompt will appear, asking for confirmation before the cache is removed.

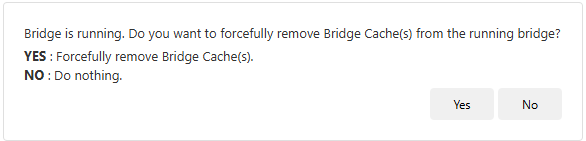

Confirm Cache Removal

  • Once you confirm the removal, if your bridge is running, you will receive a notification: "A running bridge cannot have less than 2 cache clusters. Please stop the bridge and then remove the cache". In case your bridge is stopped, a success message will be prompted on the screen in case of successful removal of the cache.
